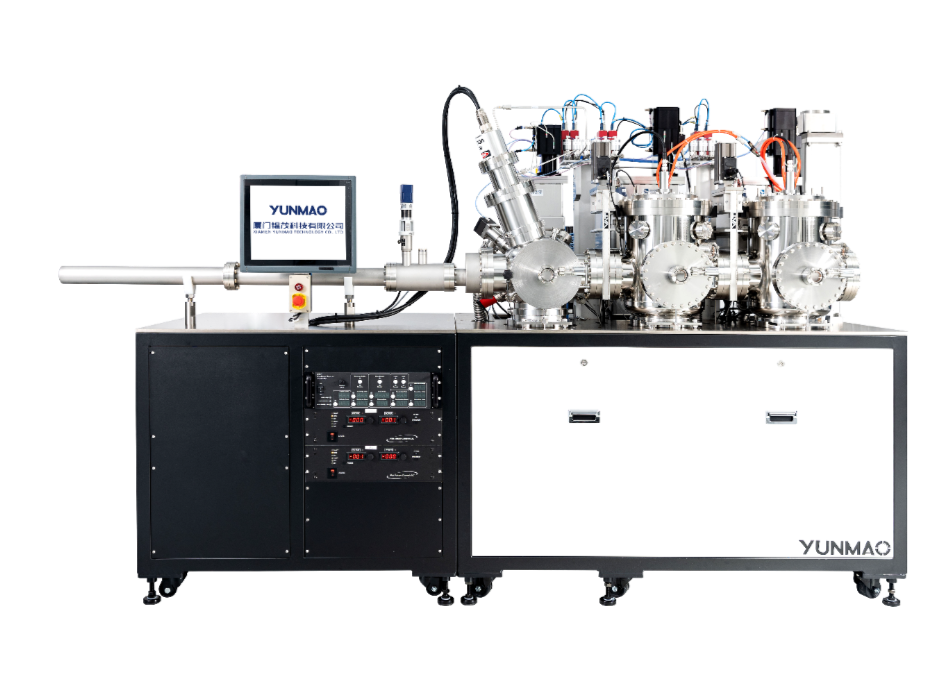

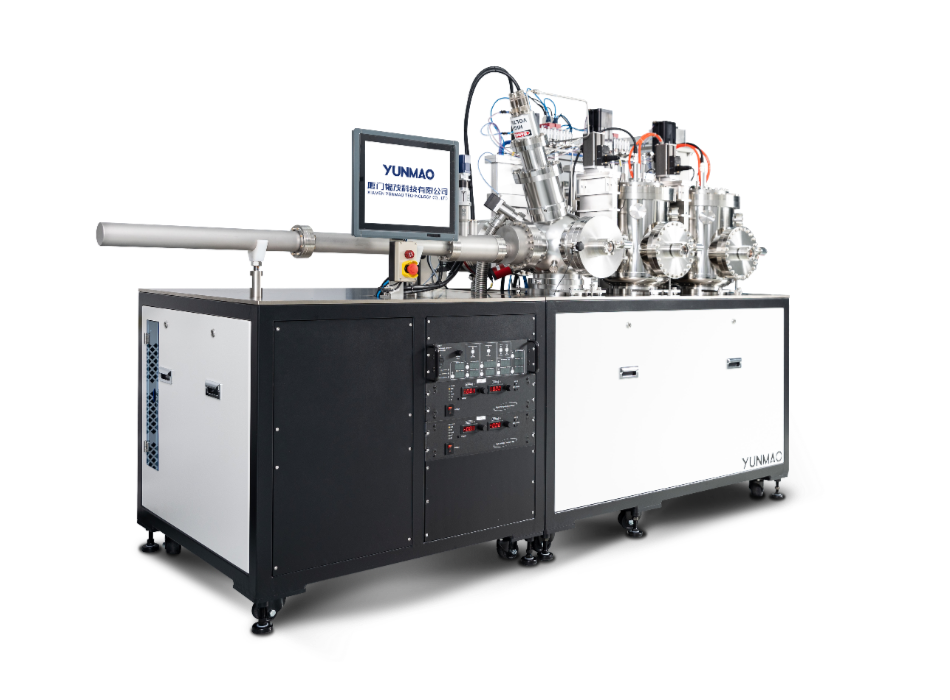

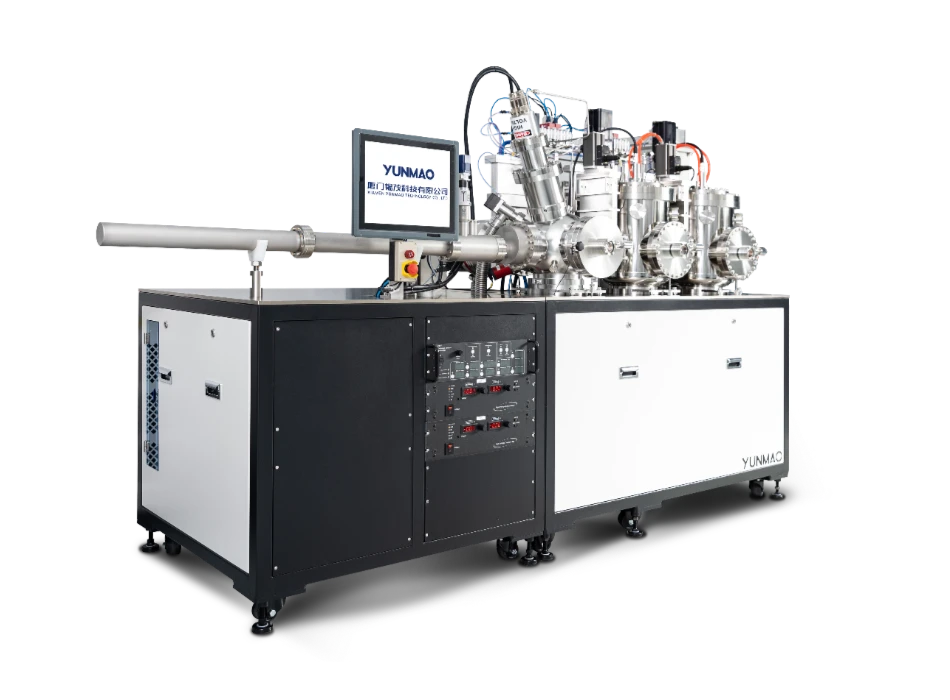

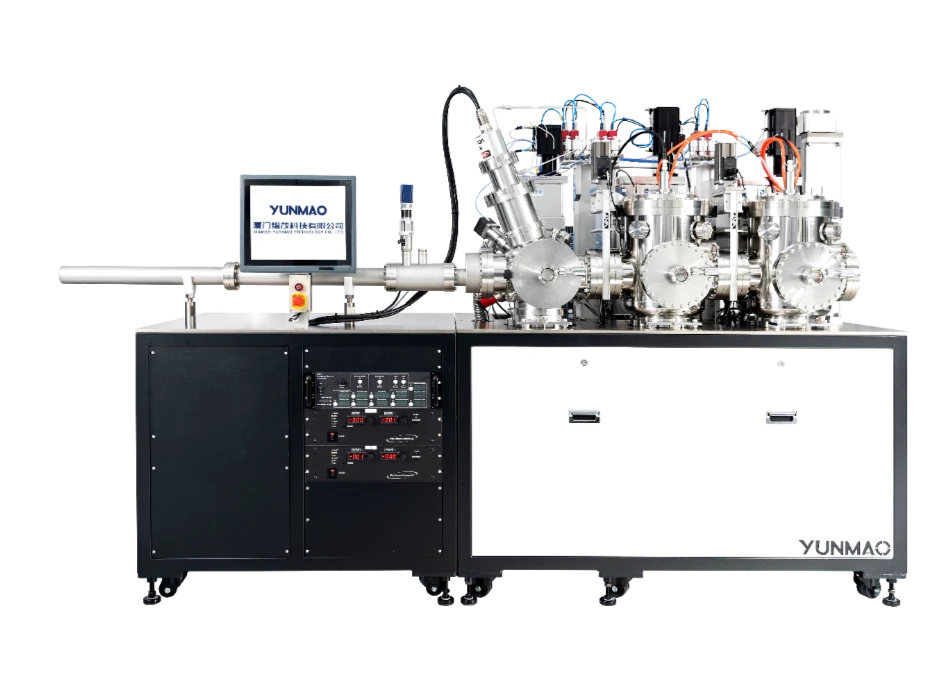

QBT-P L3Triple-chamber Ultra-high Vacuum Magnetron Sputtering System(α-Ta、Nb-Ta)-QBT-P L3Triple-chamber Ultra-high Vacuum Magnetron Sputtering System(α-Ta、Nb-Ta)

QBT-P L3Triple-chamber Ultra-high Vacuum Magnetron Sputtering System(α-Ta、Nb-Ta)

Yunmao Product Overview

QBT-P L3 includes three process chambers. Compared to QBT-P, one more sputtering chamber is included enabling multi-layer structures, such as Nb/Al-AlOx/Nb, Al/AlOx/Al, or even α-Ta/TaOx/α-Ta junctions. The system is also compatible with seed layer based process.

Yunmao Technical Advantages

UHV Chamber: Multiple chambers, including Loadlock and Sputtering

Ultimate Pressure: <3E-9Torr

Wafer Heating: RT-900ºC

HMI: Fully Automated Human-Machine Interface

Sample Size: Max 6 inch Wafer and smaller chips compatible

Wafer Transfer: Highly reliable and repeatable substrate transferring capability

Pumping Spead: From ATM to 1E-7Torr<20min (loadlock)

Uniformity: Sheet Resistance Uniformity 1 Sigma NU%<±5% (4 inch wafer with 5 mm removal from the edge)

Sputtering: DC or RF power supply, wafer and target space can change continoulsly

Products category

For Industry

ALD

Plasma Batch ALD

PBATCH Batch PEALD

Thermal Batch ALD

CBATCH 100s Batch Thermal ALD CBATCH 300s Batch Thermal ALD

CVD

MPCVD Diamond CVD

Epitaxy

SICE-Y8 SiC Epitaxy CVD System

Powder ALD/CVD

KG Powder ALD for Mass Production

SCA Powder CVD for Mass Production

For R&D

ALD

Single Wafer ALD

QBT-A
High Vacuum Plasma-enhanced ALD System MINI R&D Desktop ALD

Sputter

Single-Cathode Vertical Sputtering

QBT-P
Dual-chamber Ultra-high Vacuum Magnetron Sputtering System PVD-100
Dual-chamber High Vacuum Magnetron Sputtering System QBT-P L3
Triple-chamber Ultra-high Vacuum Magnetron Sputtering System(α-Ta、Nb-Ta)

Multi-Cathode Vertical Sputtering

QBT-MPV
Multi-target Ultra-high Vacuum Magnetron Vertical Sputtering System

Multi-Cathode Co-Sputtering

QBT-MPC
Multi-target Ultra-high Vacuum Magnetron Co-Sputtering System

MP L Customized Series

QBT-MP·L3
Multi-chamber Ultra-high Vacuum Magnetron Sputtering System

Evaporator

QBT-I Dual-chamber High-speed Evaporator

QBT-J Four-chamber Ultra-high Vacuum GLAD System

QBT-E Dual-chamber Ultra-high Vacuum Electron Beam Evaporator

Powder ALD

GM R&D Powder ALD

QBT-T Dual-chamber Plasma-enhanced Wafer and Powder ALD System

Application

Optics

Semiconductor

Perovskite

Related products

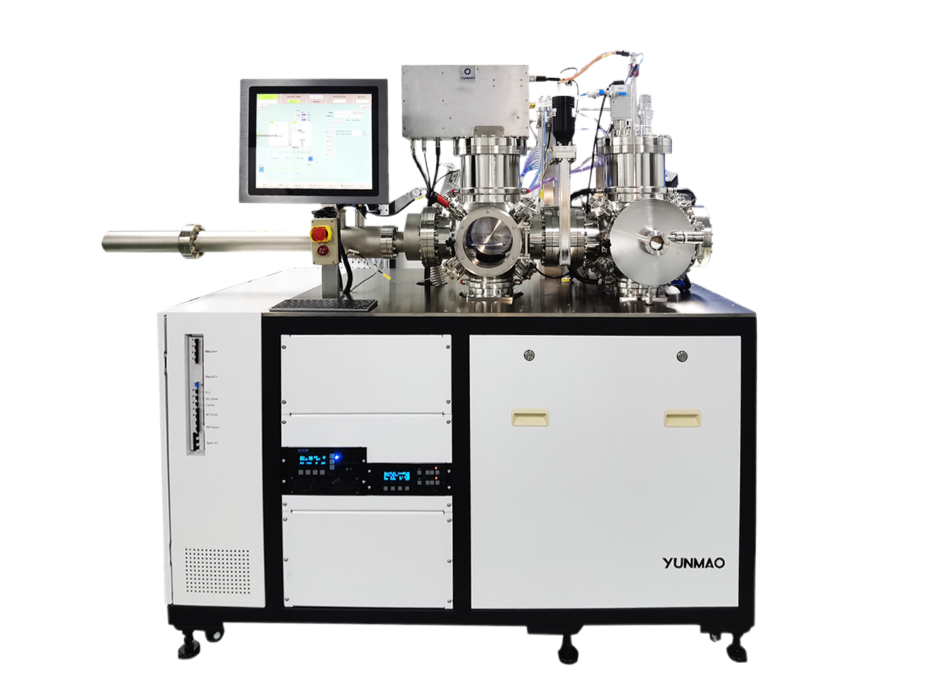

QBT-P Dual-chamber Ultra-high Vacuum Magnetron Sputtering System
